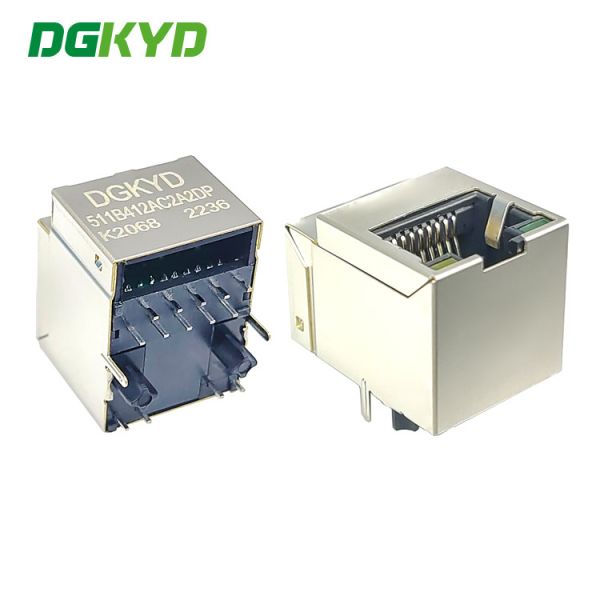

DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light

Name: DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light
Brand: DGKYD
Price: 1 USD

Quality DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light for sale

Brand Name : DGKYD

Model Number : DGKYD511B412AC2A2DPK2068

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiation

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 20 days

Packaging Details : 1080 Tray in Carton

Connection Type : pcb Mounting

HOUSING : PA66

Connector Type : Modular Jack

LED Color : Yes.L-Green/R-Yellow

Filter : With Filter

Contact Mating Area Plating Material : Gold 6u/15u/30u/50u

Housing Material : brass/plastic

Contact Base Material : Phosphor Bronze

Storage temperature : - 40 ℃ ~ 85 ℃

size : 15.95*21.55*16.5mm

Latch : TAB-UP

Contact Now

DGKYD511B412AC2A2DPK2068 RJ45 180 degree direct plug network interface 10p10c RJ45 with light

Parameters

Part Number	DGKYD511B412AC2A2DPK2068	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-Up
Filter	With Filter	LED Option	With LED
LED Color	Yes.L-Green/R-Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	100 base-t	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	10
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	WithWithout Board Lock
Housing Material	PA66 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

DGKYD511B412AC2A2DPK2068 RJ45 180 Degree Direct Plug Network Interface 10p10c RJ45 With Light
